Metadata Catalog

A unified, cross-domain metadata catalog — ABAP, DDIC, CDS, and BW objects in one place — persisted in a single DuckDB file. Once built, search, lineage, and where-used run in milliseconds instead of round-tripping SAP each time.

The catalog covers:

  • Hybrid search — full-text and semantic (Gemini embeddings), so a search for "procurement spend" can hit 0PUR_VALUE even before anyone remembers the technical name.
  • End-to-end lineage — stitched across domains (a CDS view → its DDIC tables → the BW ADSO that loads from it).
  • A business-glossary overlay — definitions, owner, line-of-business, and confidentiality layered on top of the technical metadata. Optional, and stored only in the catalog file — it never touches SAP.
  • Incremental sync — diffs against what's already stored and writes only the delta, with resume-after-interruption.
  • A web explorer — search, browse, lineage, curate, sync status, and feed export, served straight from the erpl-adt binary.

The catalog is available three ways: the CLI (erpl-adt catalog …), the web UI (erpl-adt catalog webui), and MCP tools (catalog_*) for AI agents.

Scope: build against a package or InfoArea​

Every catalog command needs an explicit scope (--package / --infoarea). There is no "catalog the whole system" default: SAP has no call to enumerate every BW InfoArea, and ABAP/DDIC package search has no pagination, so a silent "everything" default would quietly miss content past the result cap.

Discover packages first with the regular search command:

erpl-adt search 'Z*' --type DEVC --json   # all custom-namespace packages

Build​

erpl-adt catalog build always builds the feed; add --db to persist it, --format to render it, both, or neither:

# Just a summary — nothing is written anywhere
erpl-adt catalog build --sid A4H --package ZMY_PACKAGE --infoarea ZBW_AREA

# Persist into a DuckDB file (full rebuild, replaces prior content) —
# this is the file that catalog search / annotate / sync / webui all read from
erpl-adt catalog build --sid A4H --package ZMY_PACKAGE --db catalog.duckdb

# Also compute embeddings for semantic / hybrid search (needs GEMINI_API_KEY)
erpl-adt catalog build --sid A4H --package ZMY_PACKAGE --db catalog.duckdb --embed

# Render the feed instead of (or in addition to) persisting it
erpl-adt catalog build --sid A4H --package ZMY_PACKAGE --format mermaid
erpl-adt catalog build --sid A4H --package ZMY_PACKAGE --format openmetadata

catalog build --db is a single-shot, all-or-nothing write with no progress output and no resume — fine for a small scope. For anything large (thousands of packages, an hour-plus run), use catalog sync instead, even for the very first build.

Sync (incremental, resumable)​

catalog sync diffs against what's already stored and writes only the delta, printing one progress line per item on stderr:

erpl-adt catalog sync catalog.duckdb --sid A4H --package ZMY_PACKAGE
# [1/1] package ZMY_PACKAGE (elapsed 0m4s, ETA 0s)

# Interrupted (connection drop, auth expiry, Ctrl-C)? Everything already synced is
# durably committed — pick up exactly where it left off instead of starting over:
erpl-adt catalog sync catalog.duckdb --sid A4H --package ZMY_PACKAGE --resume

Checkpoint/audit state (which items are done, whether the last attempt was interrupted) lives in the same DuckDB file as the catalog data — one artifact, no sidecar file to lose track of.

Removal detection

Deleting entities that disappeared from the scope only runs on a plain, non-resumed sync. A resumed run only sees the items it personally processed, not the whole scope, so it skips removal rather than risk flagging a still-valid item as gone.

Curate (optional business overlay)​

Technical metadata gives you the what (a table's fields); curation adds the why a human would write — what an entity means, who owns it, how sensitive it is. It never touches SAP; it only writes to the catalog file's overlay columns.

# A single entity
erpl-adt catalog annotate catalog.duckdb --id <entity_id> \
    --definition "Total procurement value" --owner "jane@example.com" --lob Procurement

# Bulk, keyed by entity_id
erpl-adt catalog annotate catalog.duckdb --file overlay.yaml

View the catalog​

Three read paths, all served from the same DuckDB cache — no SAP round-trip:

# CLI — fast, cache-only
erpl-adt catalog search catalog.duckdb "procurement value" --mode hybrid

# Web UI — search, browse, lineage, curate, sync status, feed export
erpl-adt catalog webui catalog.duckdb --port 8383   # then open http://127.0.0.1:8383/

# MCP — catalog_search / catalog_get / catalog_lineage / catalog_where_used / … for AI agents
erpl-adt mcp --catalog-db catalog.duckdb          # stdio
erpl-adt mcp --catalog-db catalog.duckdb --http   # JSON-RPC over HTTP

The web explorer​

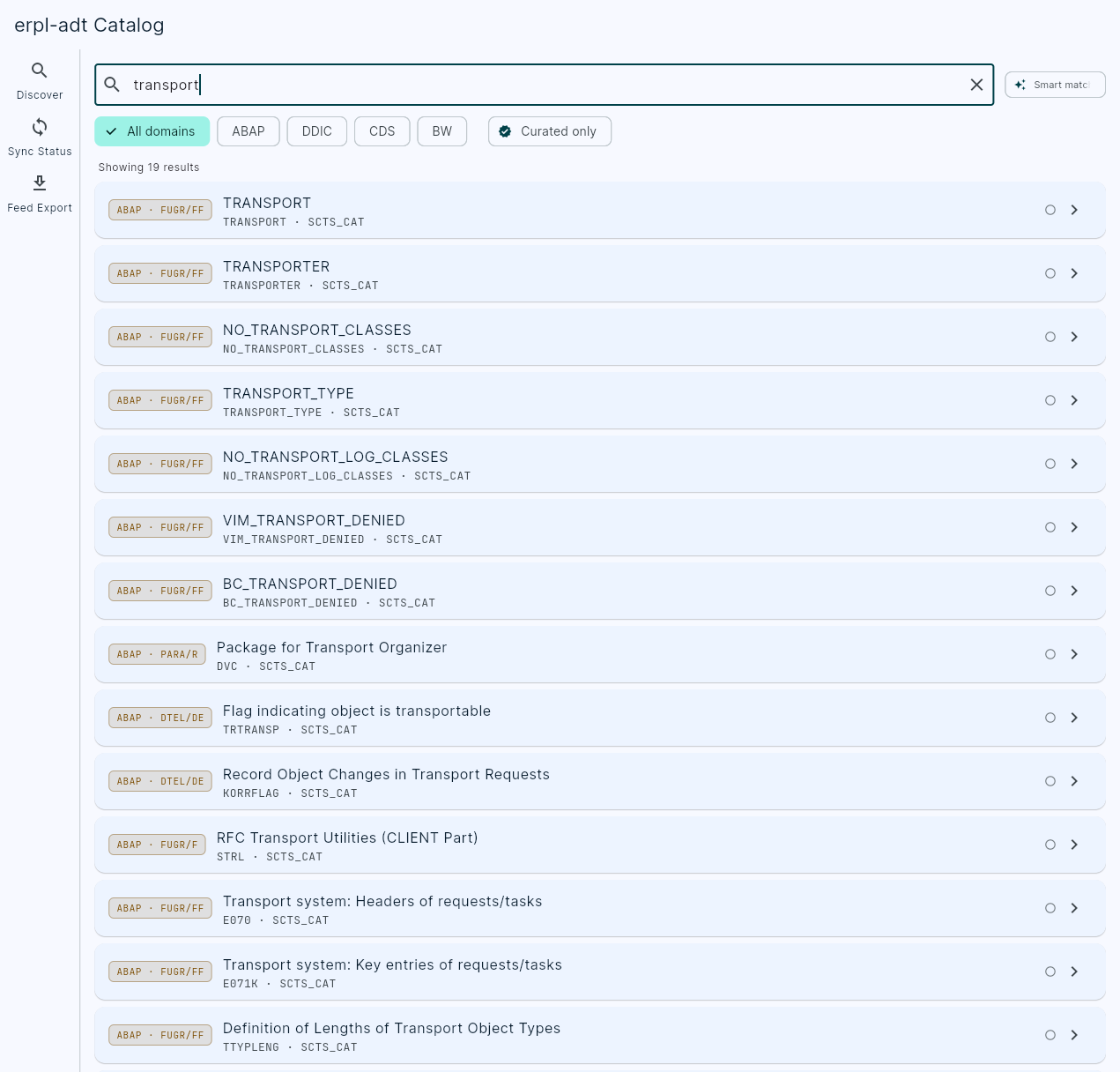

The erpl-adt catalog explorer — search, browse, and lineage over a DuckDB catalog

The web UI (a Flutter client compiled and embedded straight into the erpl-adt binary) is read-only against the cache except for curation. Search, Browse, Entity Detail, Lineage, and Driver Tree all query the same fast catalog_* tools the CLI and AI agents use; the Curate screen is the only one that writes, via catalog_annotate.

There is no build/sync button — catalog webui doesn't hold a live SAP connection, so building, exporting, and syncing stay CLI-only operations. Sync Status shows past sync runs and cache health, and Feed Export surfaces the exact erpl-adt catalog build --format … command to run for each format.

Every Explorer view — a search, an entity, a lineage graph, a driver tree — has a stable, copy-pastable URL, so you can share a deep link to exactly what you're looking at.

Serving it to more than yourself​

On the default 127.0.0.1 binding there is nothing to configure. Beyond that, catalog webui and mcp --http share one access-control model, described in full in the MCP guide:

# reachable on the LAN by IP — works as-is, an IP has no name to rebind
erpl-adt catalog webui catalog.duckdb --host 0.0.0.0

# reached in a browser by a DNS name — name it, or the browser is refused with 403
erpl-adt catalog webui catalog.duckdb --host 0.0.0.0 --allowed-hosts catalog.internal.example

# and require a token, since the Curate screen writes through catalog_annotate
erpl-adt catalog webui catalog.duckdb --host 0.0.0.0 \
    --allowed-hosts catalog.internal.example --auth-token-env ERPL_ADT_WEBUI_TOKEN

Binding beyond loopback without a token exposes the catalog API — including those curation writes — to everyone who can reach the port.

Catalog MCP tools​

When you start the MCP server with --catalog-db, the catalog_* tools are available to the agent alongside the live ADT tools:

MCP toolWhat it does
catalog_searchHybrid (full-text + semantic) search over the cache
catalog_getFetch a single entity by id, with fields and overlay
catalog_lineageUpstream/downstream lineage for an entity
catalog_where_usedReverse dependencies — what references this entity
catalog_driver_treeExpand an entity's driver tree
catalog_object_types / catalog_object_subtypesEnumerate the type/subtype facets present in the cache
catalog_statsCache size, counts, and coverage
catalog_sync_statusLast sync runs and cache health
catalog_annotateWrite a business-overlay annotation (the only writing tool)
catalog_build / catalog_exportBuild the feed / export it in a chosen format

See the MCP guide for client wiring.
